How To Install A Cable Tv Outlet

It would seem that every fourth dimension I've considered moving my TV to a new spot in the business firm, that there'southward never a cable outlet where I need ane. I recently remedied this outcome and wanted to share with  yous how to tackle your ain DIY Cable Installation!

This tutorial is specific to installing "through the wall" cablevision lines in houses with a clamber space.  Since many cable customers accept Hard disk receivers, I think it's of import to install a domicile run aka an uninterrupted run of cable.  Doing so will result in a college indicate and better quality picture.  With that being said, allow'southward take a look at what you'll demand.

Materials List

( I've included affiliate links for your convenience. I earn a small percentage from a purchase using these links. At that place is no additional cost to you. You tin read more than most affiliate links here .)

• Low Voltage Electrical Box
• Keyhole Saw
• RG6 Cablevision
• three/8″ x 54″ Auger Drill Bit
• iii/8″ x 12″ Drill Flake
• Drill
• Cablevision Clips
• Hammer
• Coax Cablevision Receptacle Wall Plate
• Coax Cable Stripper
• Compression Tool w/ F-Connectors
• Pencil
• String
• Fish Pole or Straightened Coat Hanger

Instructions for Installing Your Own Cable Outlet:

When you've decided where to install the new cable outlet, measure up fifteen″ and mark an expanse 1-1/2″ ten iii-iii/4″ .

Using a keyhole saw, cut through the drywall to create the opening for the installation of a depression voltage electrical box.

Before you consummate the adjacent step, make sure that the expanse you plan on drilling into, doesn't contain any hazards (i.e. electrical cable, duct work, gas lines, etc.) With open access into the wall, place the tip of the auger bit into the cutout and drill into the lesser of the stud wall to gain access into the crawlspace below.

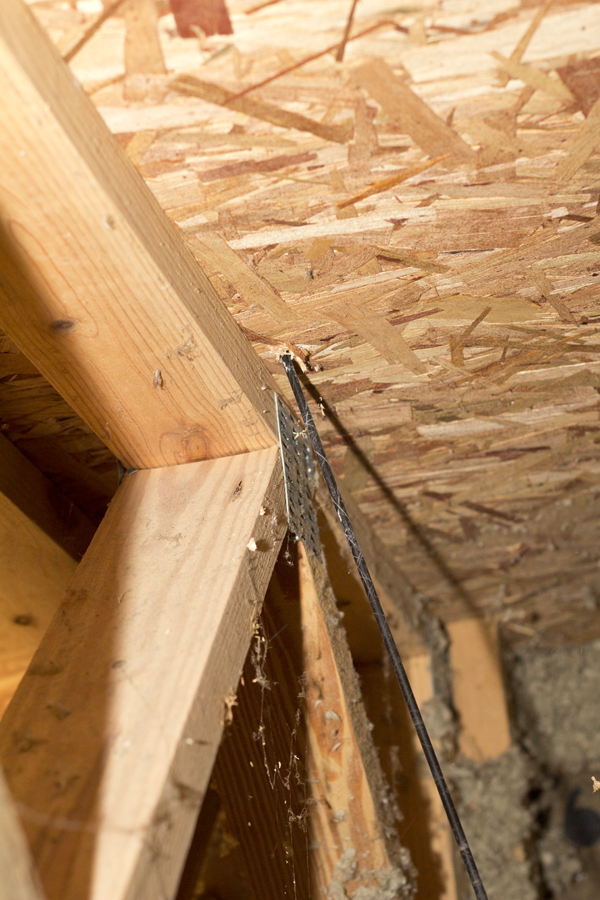

Leave the auger bit in place and caput down to the crawl space.  This will make it easy to spot where you'll exist installing the cable.  Once in place, tie one cease of the cable line onto the tip of the drill fleck using utility string, so head back inside.

Slowly pull the drill bit forth with the tied on cable line support through the opening. Then slide the low voltage box into the opening in the drywall and secure it in place.

Before you can finish this stop of the installation, you'll demand to add an F-connector to the end of the cable.  Here's a quick reference guide on how to employ a pinch tool to attach F-connectors to coax cablevision.

Now, spiral the F-connector onto the dorsum of the coax cable receptacle wall plate and secure the wall plate onto the low voltage electrical box.

The inside work is done for the fourth dimension existence.  At present you'll demand to head exterior to where your cable box is located.  Depending on how your home is synthetic, and where you cablevision lines are run, this next pace may be dissimilar for you.

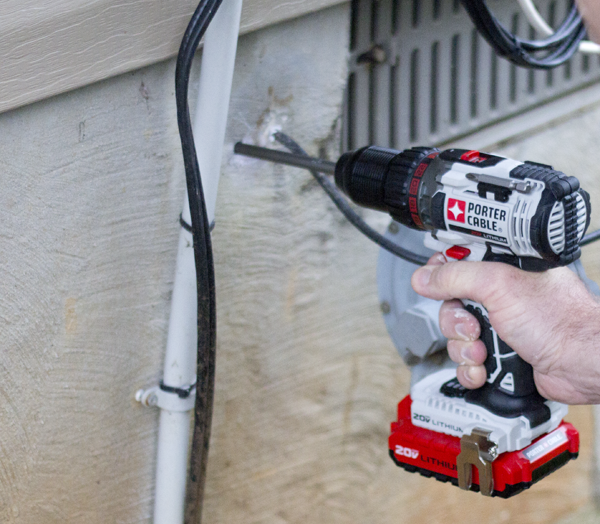

Using a 12″ masonry chip, drill through the concrete block.

One time y'all're through the block, slide a fish pole or a straightened coat hanger through the pigsty.

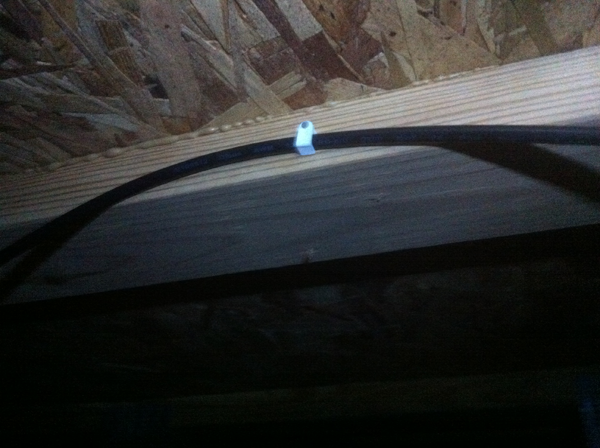

Now head back into the crawlspace.  With 1 end of your cable line installed,  you can secure the remaining run of cablevision to the floor joists using cablevision clips as you piece of work your way toward the opening you just made, closest to the cable box.

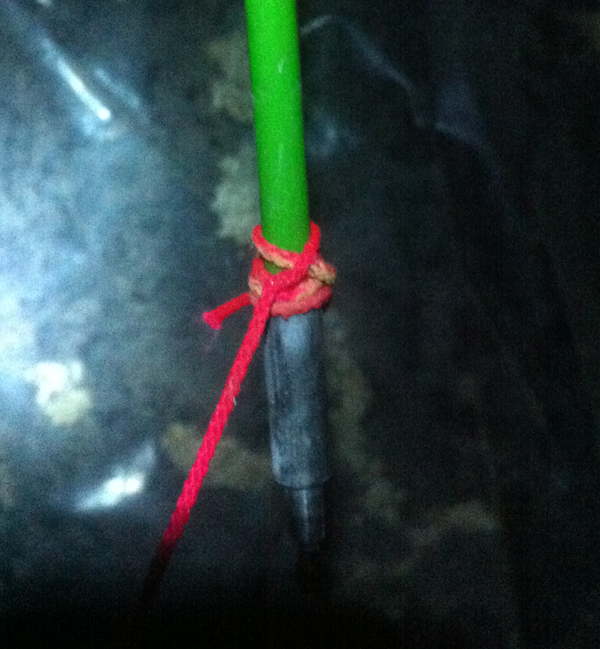

When you accomplish the drilled opening, attach a small section of string to the end of the fish pole.

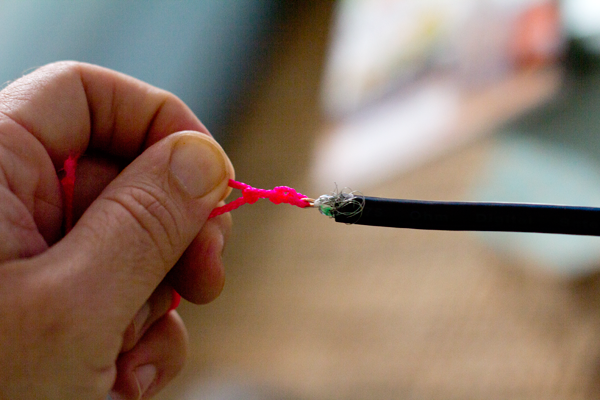

And so tie the other end of the string to your cable line. One time information technology'south secure, head back and pull your line out.

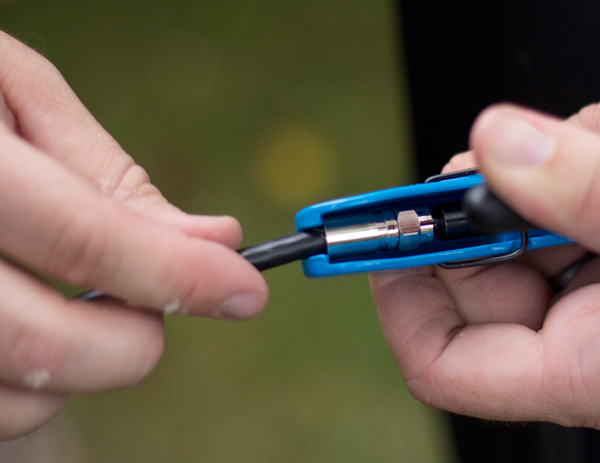

Before you can stop the installation, y'all'll need to add an F-connector to this cease of the cable post-obit the same instructions as you used inside.

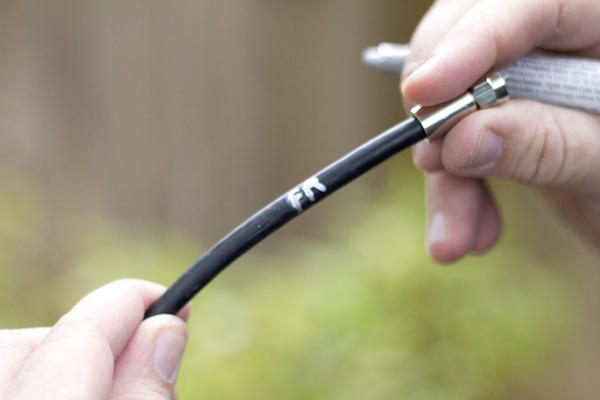

Anytime I run a new cable line, I mark it using a paint marker, so that if something ever arises and I need to disconnect my lines, I tin brand sure that the correct cables go reconnected.

And every bit the final step, connect your newly run cable line to an open connector on the cable company'south cable splitter.

Before I began tackling my DIY cable installation, I looked into how much information technology would cost to have a professional installer come out and run my cablevision lines through the wall.  To run a 50′ section of RG6 from the outer cable box to wall within, it would have cost me a minimum of $125.  Between Lowe'south and Amazon.com, I was able to go all of the materials I needed for $85.  So not just did I save money past installing the cablevision line myself, but now if I want to run annihilation else through a wall, I own the tools to DIY it!

So the side by side time you're rearranging a room and find that y'all're without a cable outlet in a optimal spot, no need to fret!  Tackle your own DIY cablevision installation!
